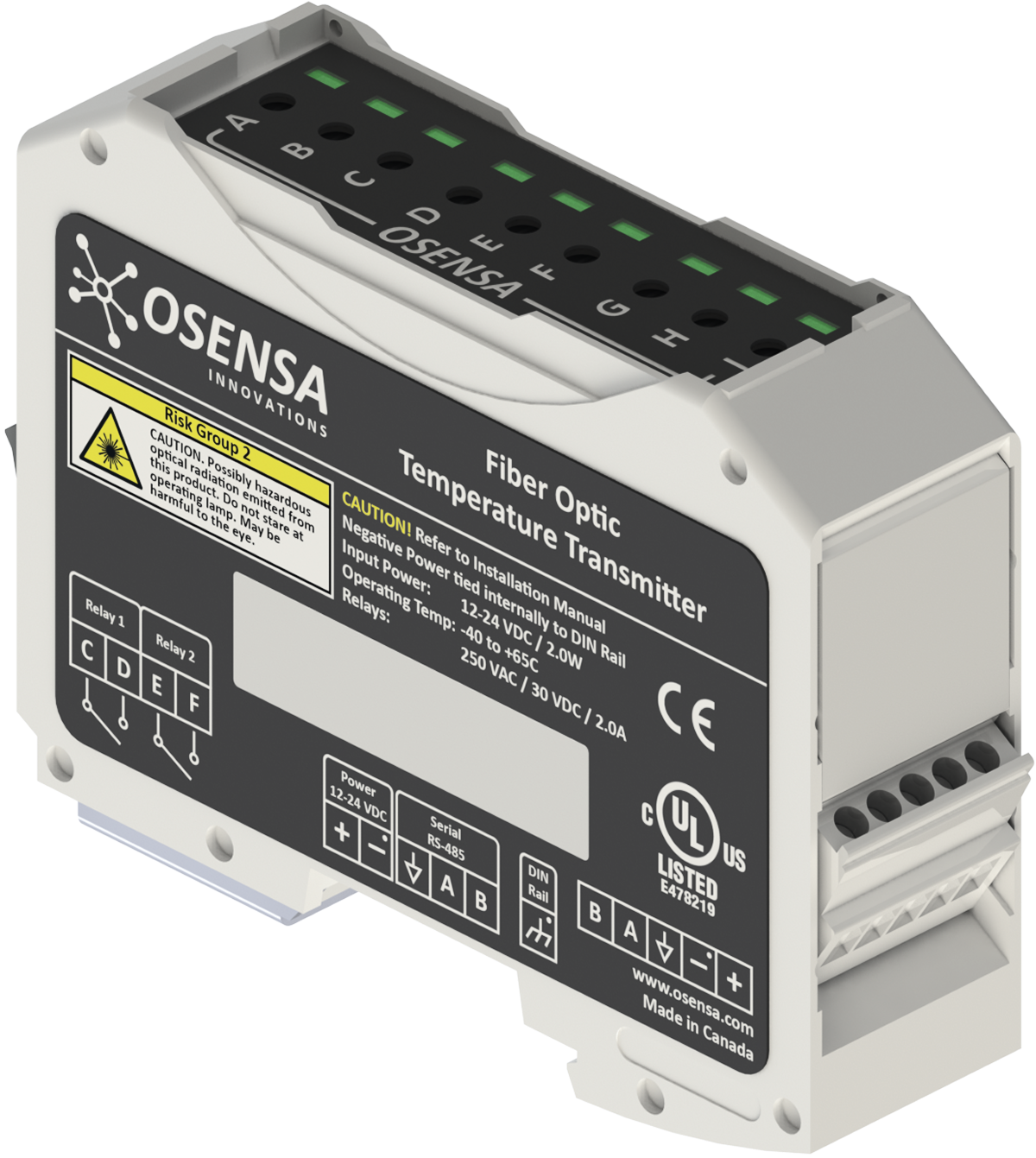

FTX-910-PWR+R

9 Ch, RS-485 Only

OSENSA’s FTX-910/610/310-PWR+R fiber optic temperature transmitters provide continuous real-time temperature monitoring of switchgear, busbars, and other medium voltage electrical equipment rated up to 38kV. Each transmitter accepts from three to nine optical fiber sensor inputs. The FTX-910/610/310-PWR+ transmitters are powered by 12~24VDC and include isolated RS485 serial connectivity over industry standard Modbus RTU protocol. Multiple transmitters can be connected in series on a standard 35mm DIN rail with power and RS-485 communication supplied by the five-pin T-Bus connector. Also included are two programmable 2A relays for over-temperature alarms.

Compatible Products

Fiche Technique

PRB-110

Sondes de Température à Fibre Optique

Appareillage de Commutation, Transformateur, Mobilité Électrique

Nylon de 2,3 mm, POF de 1 000 µm

Plage de Mesure:

-40°C to +120°C

Précision de Mesure:

±1.0°C

Capacité Maximale:

38 kV, triphasé

Fiche Technique

PRB-910

Sondes de Température à Fibre Optique

Appareillage de Commutation, Transformateur, Mobilité Électrique

Nylon/FEP de 2,3 mm, POF/GOF de 1 000 µm

Plage de Mesure:

-40°C to +200°C

Précision de Mesure:

±1.0°C

Capacité Maximale:

38 kV, triphasé
